[AW-GET-094A-130]How to set VLAN and port trunk?

QUESTION

I have two switches AW-GET-094A-130. How to setup two VLAN and port trunk for the two switches?

For switch 1
1. VLAN 11 for camera (port 1, 2, 3, 4)
2. VLAN 42 for management(Port 5, 6, 7)
3. Port 8 Trunk

For switch 2
1. VLAN 11 For camera (port 1,2,3,4)
2. VLAN 42 For management(port 5, 6, 7)
3. Port 8 Trunk

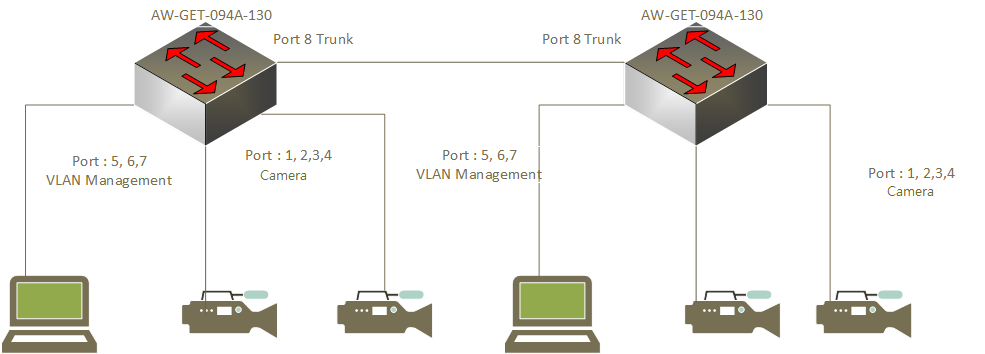

I want switch 1 VLAN 11 can talk with switch 2 VLAN 11 and switch 1 VLAN 42 management can talk with switch 2 VLAN 42 management, see Architcture.png.



ANSWER

Please follow below steps to set VLAN and port trunk for each switch.
Step1: Connect your PC to any of port 1-4 of the switch to open switch web UI.

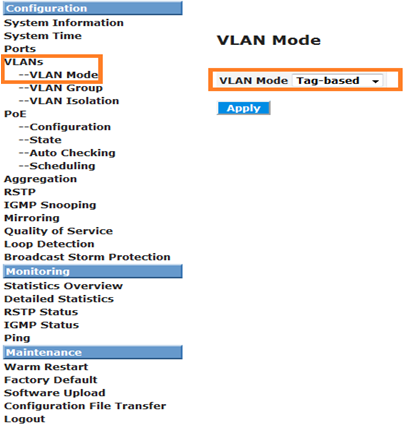

Step2: Set VLAN mode to "Tag-based".

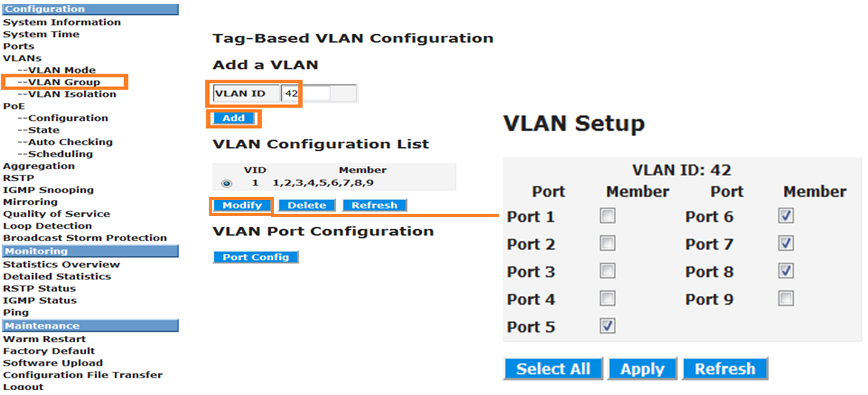

Step3: Create a VLAN group "42" and then click "modify" to enable port 5-8.

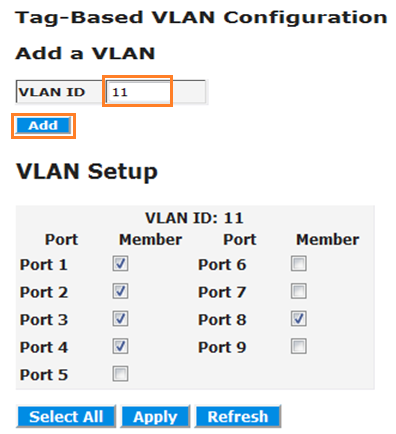

Step4: Create a VLAN group "11" and click "modify" to enable port 1-4 and port 8.

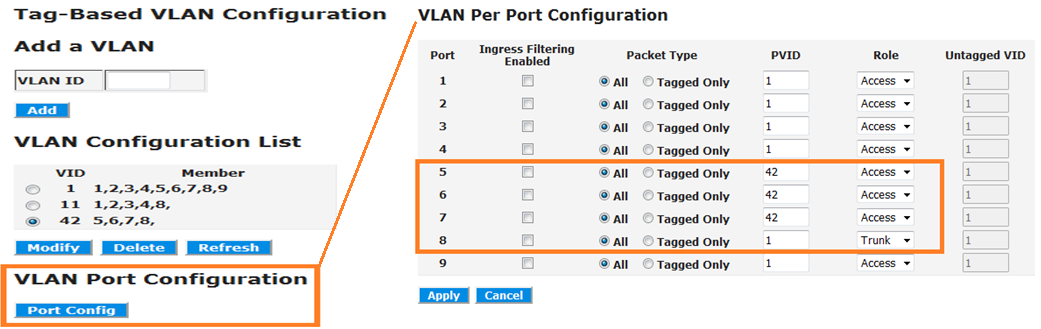

Step5: Click "port config" to set port 5-8 as below. Note that port 8 is for trunk.

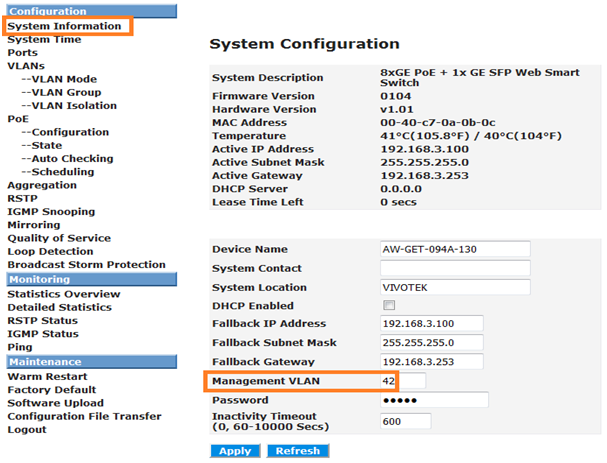

Step6: Modify "Management VLAN" to "42".

Step7: Connect your PC to any of port 5-7 of the switch to open switch web UI.

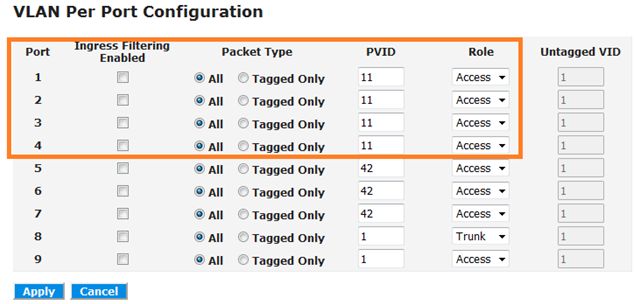

Step8: Click "port config" to set port 1-4 as below.
