[VORTEX] How to estimate general bandwidth consumption?

Question

How to estimate general bandwidth consumption?

Answer

Bandwidth consumption
= Streaming bit rate + background (metadata) bit rate

Estimate. bit rate per access(VORTEX camera)

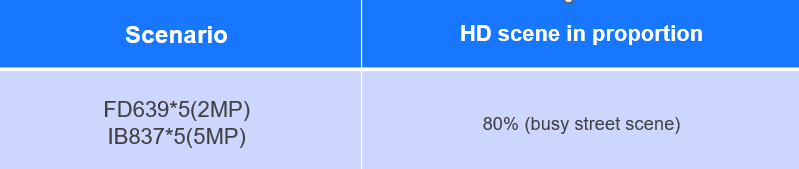

Example of VORTEX camera

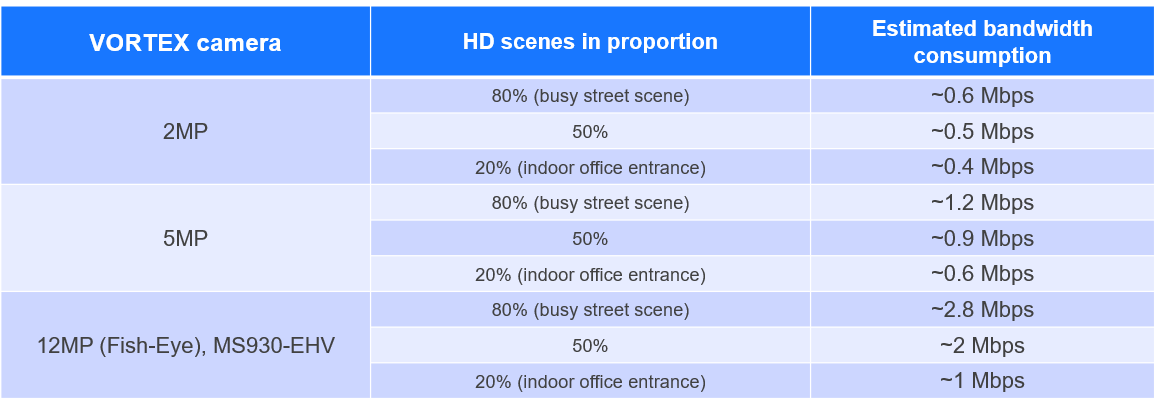

As shown in the table above,

FD639(2MP camera) at 80% (busy street scene) requires 0.6 Mbps per access.

IB837(5MP camera) at 80% (busy street scene) requires 1.2 Mbps per access.

Therefore,

One operator viewing 10 cameras = 0.6*5 + 1.2*5 = 9Mbps

Two operators viewing 10 cameras = 9*2 =18Mbps

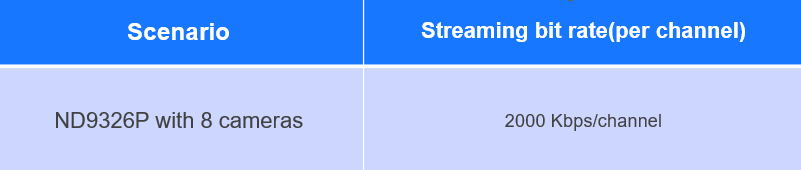

Example of VORTEX Connect

Bandwidth consumption
= Streaming bit rate + background (metadata) bit rate

One operator viewing 8 cameras = (2000*8)+(30*8) = ~16 Mbps

Two operators viewing 8 cameras = (2000*8*2)+(30*8) = ~32 Mbps

Note:

• Ignoring the bandwidth consumption of archiving

• Cloud storage backup enabled on the schedule user sets; the bandwidth consumed by cloud backup occurs within the scheduled window.
