[VORTEX Camera] DI/DO Settings

The VORTEX Portal allows users to remotely manage manage and interact with various connected devices Digital Input/Digital Output (DI/DO).

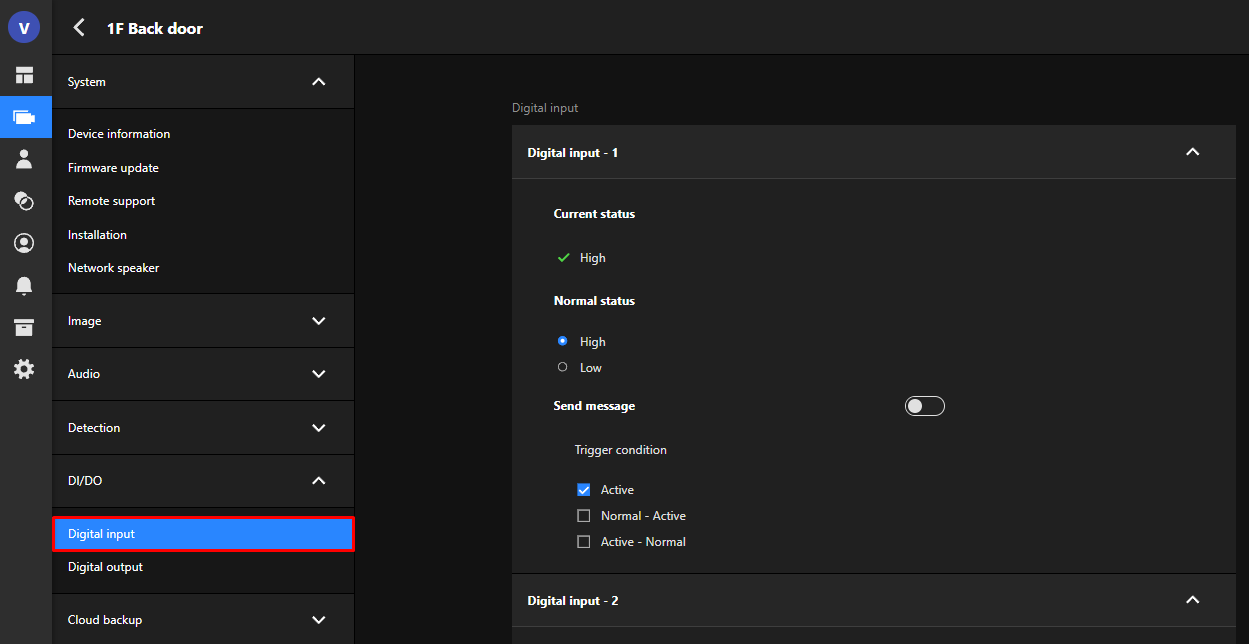

Digital input:

Select High or Low as the Normal status for the digital input. Connect the digital input pin of the Network Camera to an external device to detect the current connection status.

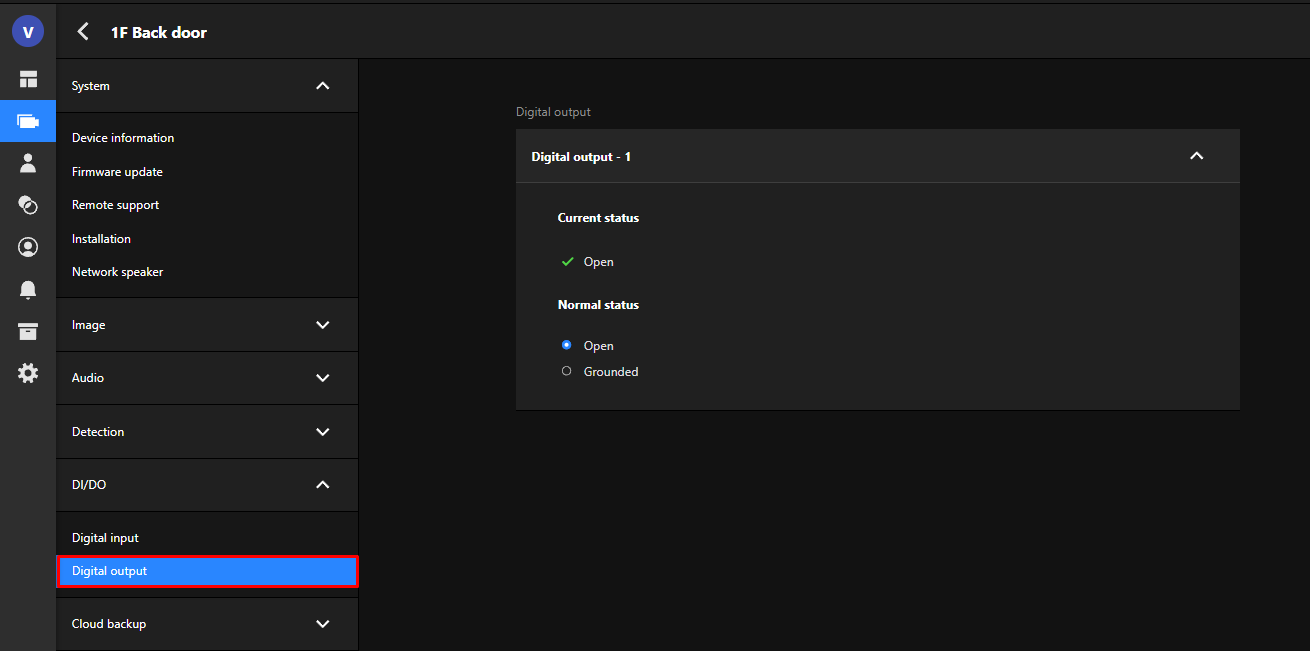

Digital output:

Select Grounded or Open to define the normal status for the digital output. Connect the digital output pin of the Network Camera to an external device to determine the current status.

Enable the detection and select the time frame of the effective time span if necessary.

These features enhance the interactivity and automation capabilities of your surveillance systems, making them more versatile in various security and monitoring applications.

IMPORTANT NOTE: DI/DO settings are only available for VORTEX cameras with the DI/DO.
